Motherboard
Form Factor Mini ITX / micro ATX
Width 6.7 in
Depth 6.7 in
Multi-Core Support Dual-Core
Chipset Type Intel 945GC Express / Intel ICH7
Max Bus Speed 533 MHz
BIOS Type Intel
Storage Controller ATA-100, Serial ATA-300
Power Connectors 4-pin ATX12V connector, 20-pin main power connectorExpansion Slot(s) 1 memory ( 1.8 V ) - DIMM 240-pin
1 PCI
Storage Interfaces Serial ATA-300 - connector(s): 2 x 7pin Serial ATA - 2 device(s)
ATA-100 - connector(s): 1 x 40pin IDC - 2 device(s)
Interfaces 4 x Hi-Speed USB - 4 pin USB Type A
1 x keyboard - generic - 6 pin mini-DIN (PS/2 style)
1 x mouse - generic - 6 pin mini-DIN (PS/2 style)
1 x parallel - IEEE 1284 (EPP/ECP) - 25 pin D-Sub (DB-25)
1 x serial - RS-232 - 9 pin D-Sub (DB-9)
1 x display / video - VGA - 15 pin HD D-Sub (HD-15)
1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45
1 x display / video - S-video output
1 x audio - line-in - mini-phone 3.5 mm
1 x microphone - input - mini-phone 3.5 mm
1 x audio - line-out - mini-phone stereo 3.5 mm
Additional Connectors (Optional) 4 x Hi-Speed USB

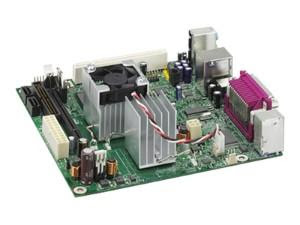

Intel Desktop Board D945GCLF2
